简介:

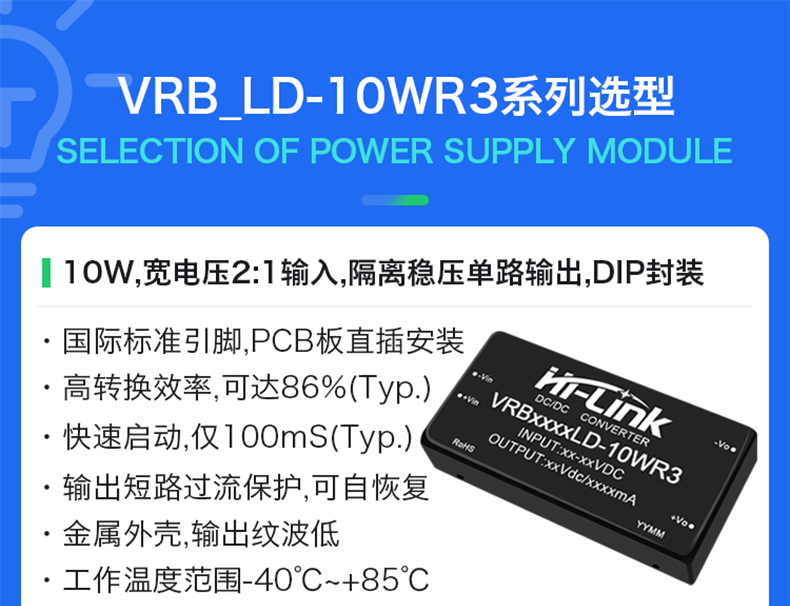

VR(A)B_LD-10WR3系列产品输出功率为 10W，2:1宽电压输入范围，效率高达86%，1500VDC的常规隔离电压，允许工作温度-40°Cto+85℃，具有输出过流、短路保护功能，广泛应用于医疗、工控、电力、仪器仪表、通信、铁路等领域。
特点:
宽范围输入(2:1),输出 10W
转换效率 86%(Typ)
隔离电压 1500Vdc
待机功耗:0.3W(典型值)
超快速启动:100ms(典型值)
工作温度范围:-40°C~+85°C输出短路，过流保护金属外壳，输出纹波低

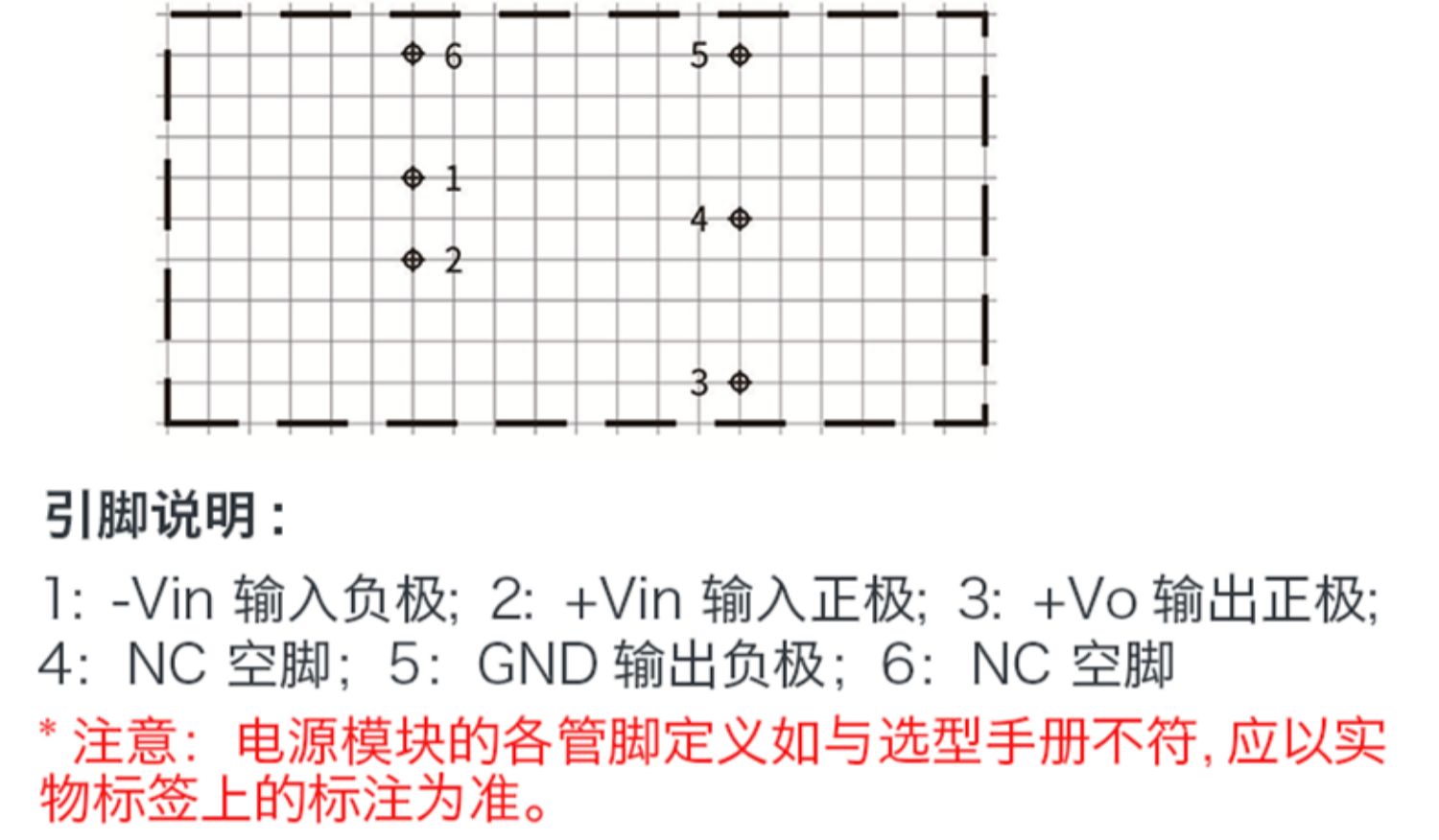

国际标准引脚，PCB 板直插安装
